OilMat™ P
Portable fluid dispensing. Wherever you need it.
Compact and portable fluid dispensing for flexible use throughout the workshop.
OILMAT™ P

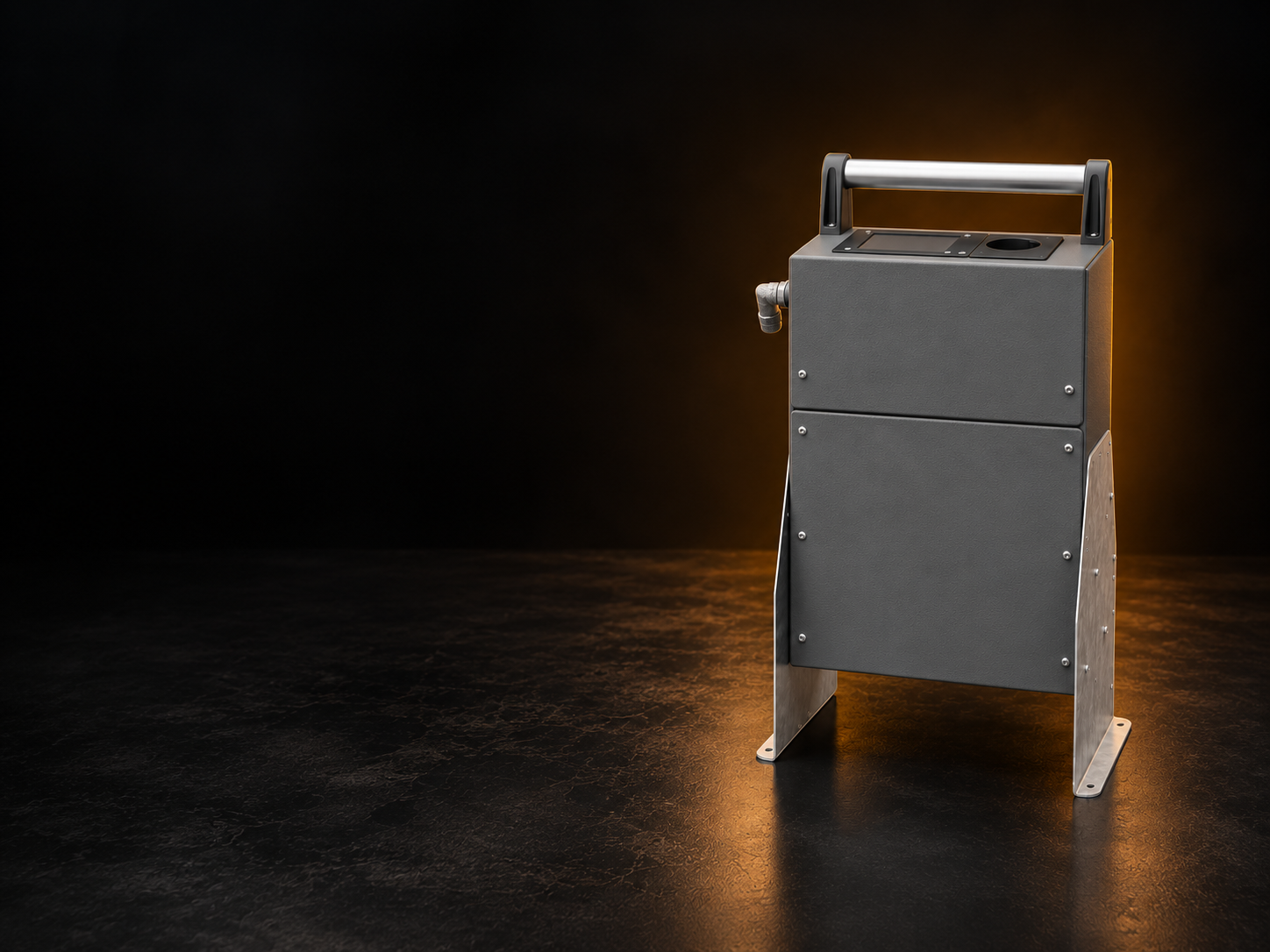

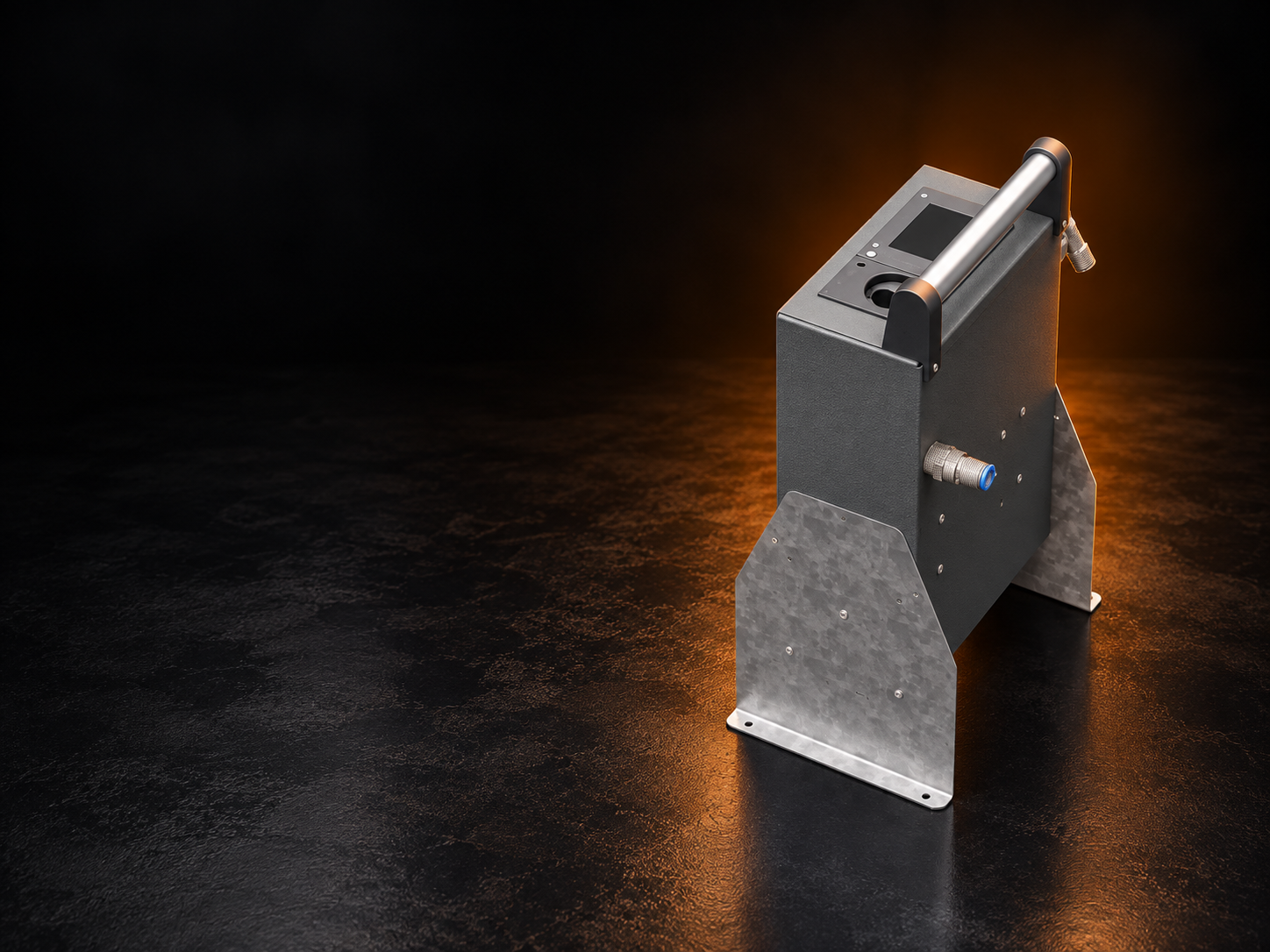

OilMat™ P is a compact and portable fluid dispensing solution designed for use wherever fluids need to be dispensed.
Built on the OilMat™ PU platform, the unit is equipped with support feet and a carrying handle, making it easy to move between locations. From workshop service to agricultural machinery, elevators and marine applications, OilMat™ P provides flexible fluid dispensing without the need for a fixed installation.
Portable by design.
Flexible by nature.
Built to go where the work is.
Cordless mobility
Battery-powered operation allows OilMat™ P to be used without a permanent power connection, making it easy to move between locations and applications.
Lightweight and portable
Weighing only 9 kg without hoses, with integrated support feet and a carrying handle, OilMat™ P is easy to transport between locations.
Flexible applications
Designed for use across workshop, agricultural, elevator and marine applications where a fixed dispensing installation is not practical.
High-flow configuration
OilMat™ P can be configured with larger hoses for higher flow rates, making it suitable for applications where larger fluid volumes need to be dispensed efficiently.
Technical specifications
250 cSt at 40°C
Push-in, D16 mm
Push-in, D14 mm
12–15 V DC
Milwaukee M12
Grey, RAL 7015 / Galvanised
Black
9 kg
2,5-5 L/min*
Approx. 20 L/Ah*
Max. viscosity
Suction connection
Outlet connection
Operating voltage
Battery socket
Metal
Plastic
Weight
Flow rate
Flow per Ah
*5W-30 at 20°C. 5 L/min requires a high-flow configuration. Performance varies with viscosity and temperature.
Accessories
Hose configurations
OilMat™ P is supplied without hoses, allowing the system to be configured for the specific application.
Choose the appropriate suction and outlet hose configuration based on the container setup and required flow.
Power supply
For applications where mains power is available, OilMat™ P can be operated using an external power supply instead of an M12 battery.
View all OilMat™ accessories →
Support & Downloads
Product datasheet
Product information, technical specifications and dimensions for OilMat™ P.
Setup & support videos
Watch video guides for setup, operation and support of OilMat™ systems.
Watch Setup & support videos
Technical support
Access manuals, setup guides, troubleshooting and technical support for OilMat™ systems.
