OilMat™ PU
The compact core of the OilMat™ system.
Compact pumping and control unit for flexible professional fluid dispensing.
OILMAT™ PU

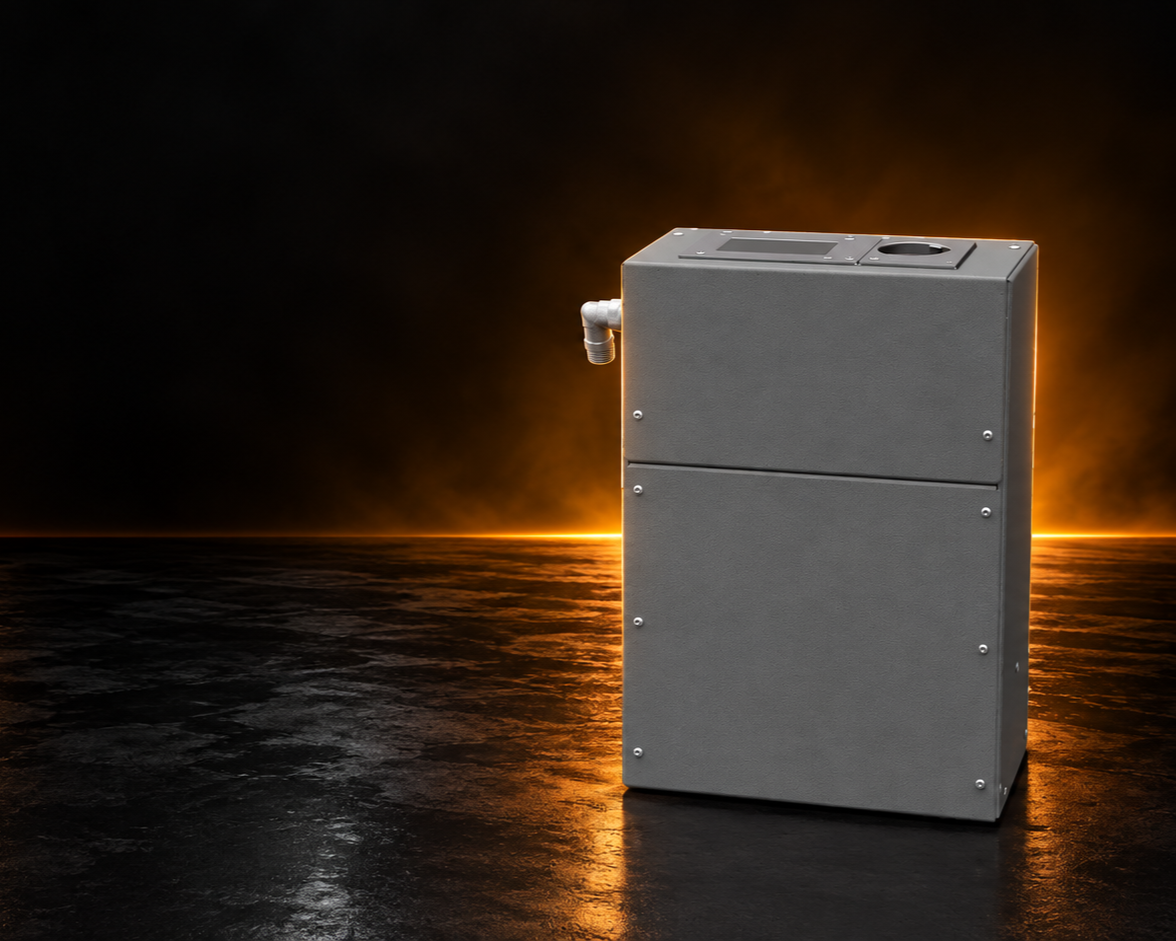

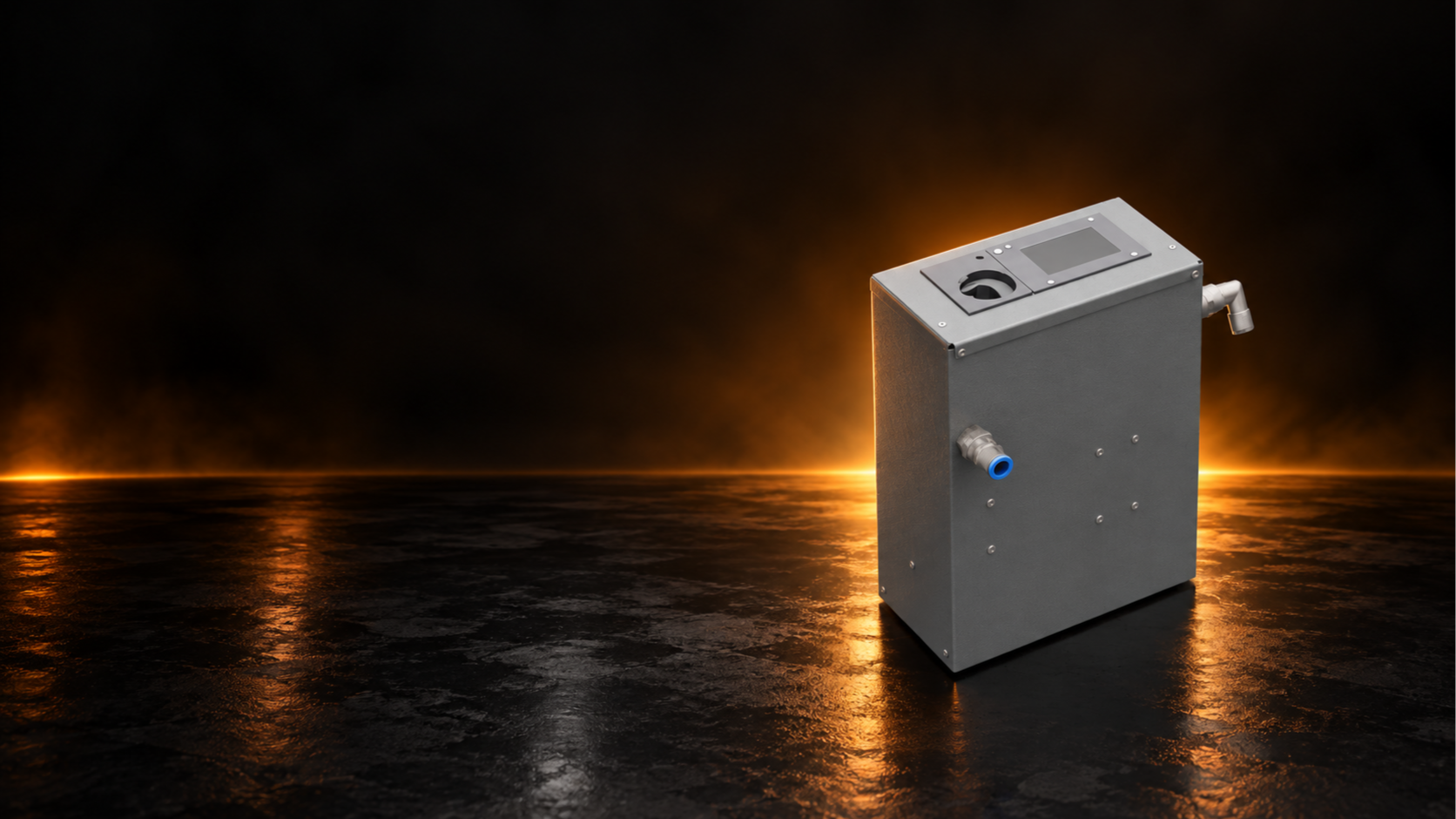

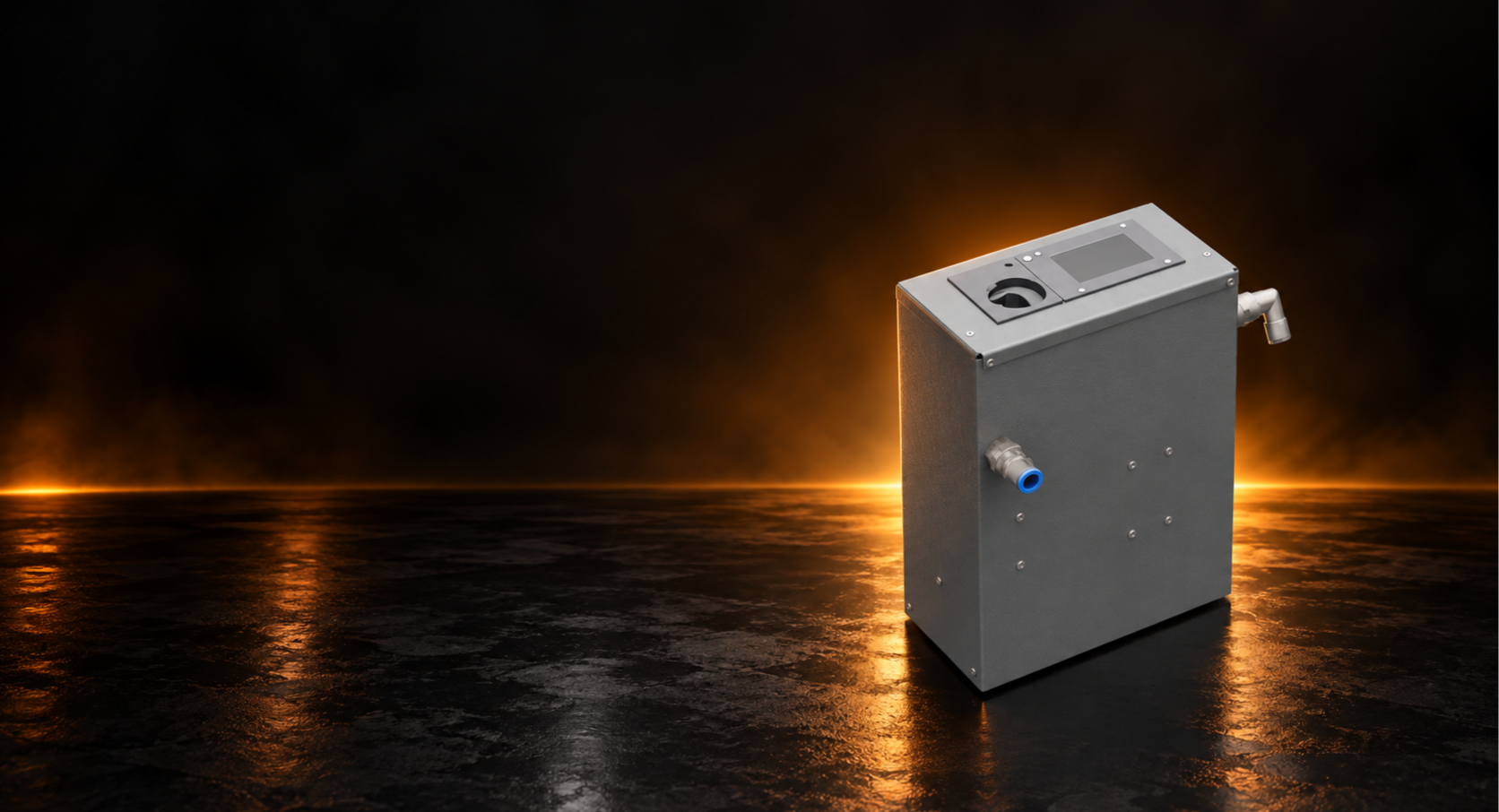

OilMat™ PU is a compact pumping and control unit designed for flexible professional fluid dispensing.
The unit can be used as a standalone solution or integrated into a customised setup — for example, mounted on an existing trolley, wall or other suitable installation. This makes PU a flexible platform for building an OilMat™ solution around the requirements of the workshop.
The foundation for flexible OilMat™ solutions.
Built for multi-fluid workshops.
Cordless workshop mobility
Battery-powered operation provides flexible fluid dispensing without the need for a permanent power connection.
Standalone or integrated
Use PU as a standalone pumping unit or integrate it into an existing trolley, wall-mounted solution or customised installation.
Adjustable dispensing speed
The dispensing speed can be reduced for vehicles that require a lower filling rate. A slim outlet nozzle can be connected for applications where a more controlled flow is required.
Digital fluid management
Built-in connectivity provides the platform for precise dispensing, user and job tracking, reporting and automatic reordering.
Technical specifications
Max. viscosity
Suction connection
Outlet connection
Operating voltage
Battery socket
Metal
Plastic
Weight
Max. flow rate
Flow per Ah
250 cSt at 40°C
Push-in, D16 mm
Push-in, D14 mm
12–15 V DC
Milwaukee M12
Grey, RAL 7015 / Galvanised
Black
7.5 kg
2.5-5 L/min*
Approx. 20 L/Ah*
5W-30 at 20°C. 5 L/min requires a high-flow configuration. Performance varies with viscosity and temperature.
Support & Downloads
Product datasheet
Product information, technical specifications and dimensions for OilMat™ PU.
Technical support
Access manuals, setup guides, troubleshooting and technical support for OilMat™ systems.
Setup & support videos
Watch video guides for setup, operation and support of OilMat™ systems.
