OilMat™ S1
Dedicated dispensing. Maximum simplicity.
Stationary single-fluid dispensing for workshops requiring a dedicated fluid solution.
OILMAT™ S1

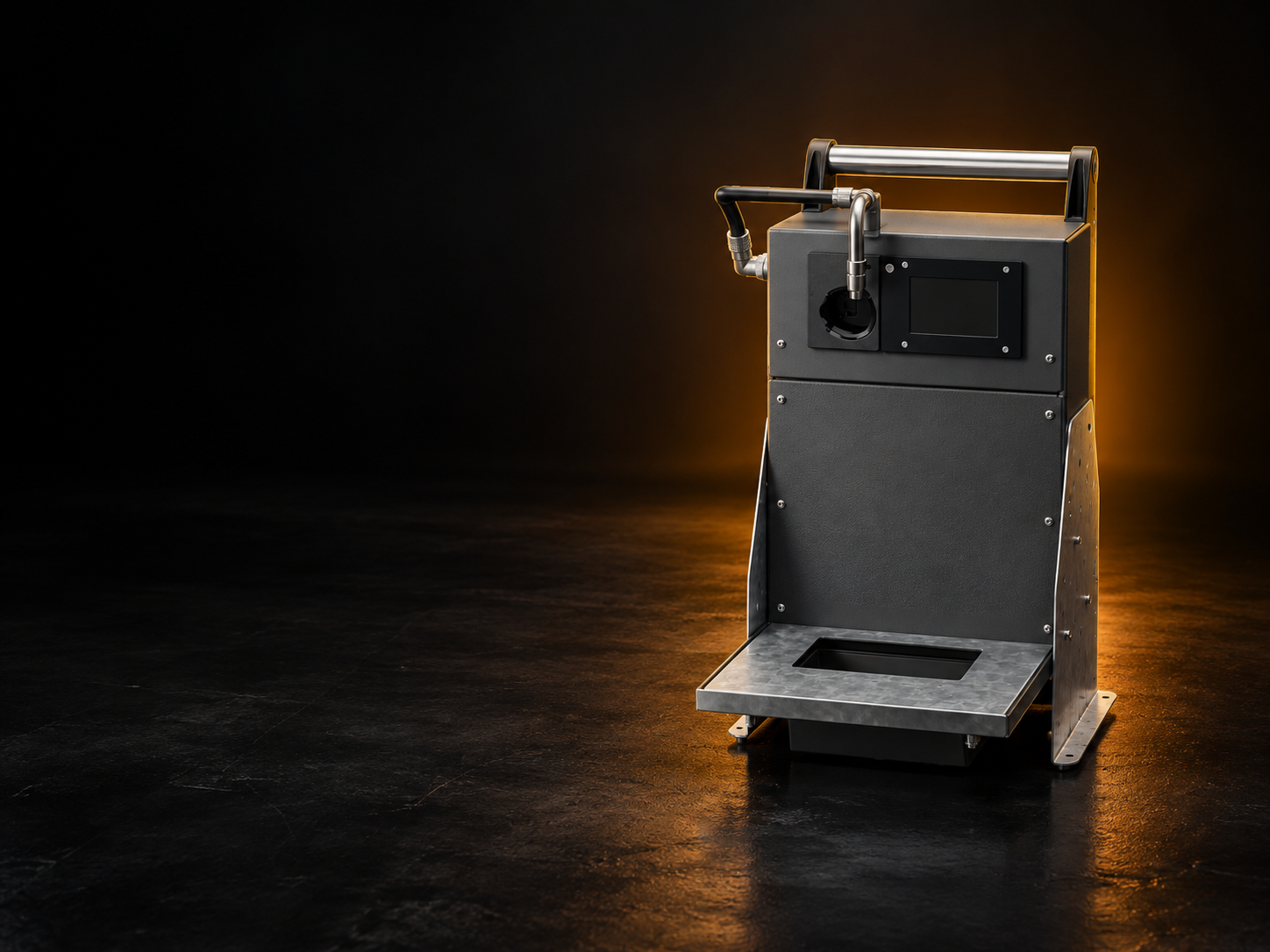

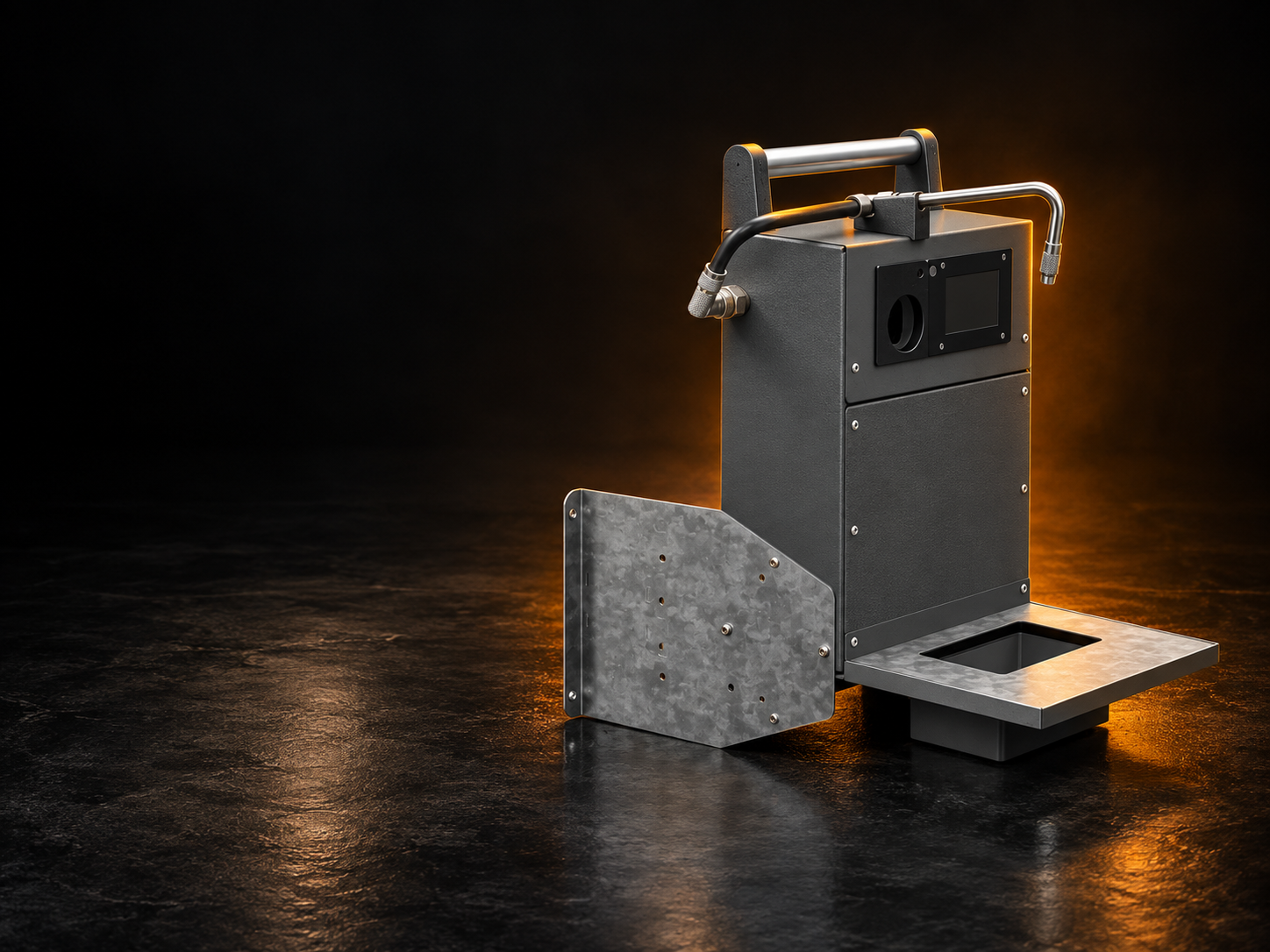

OilMat™ S1 is a stationary single-fluid dispensing system designed for workshops that require a dedicated dispensing point for one fluid.
With a direct suction connection and no multi-fluid manifold, S1 provides a simple and efficient fluid path from the container to the dispensing point. The system combines precise dispensing with OilMat™ fluid management, including user and job tracking, reporting and automatic reordering.
One fluid. One dedicated solution.
Built for dedicated fluid dispensing.
Dedicated single-fluid setup
Designed for one fluid, S1 provides a straightforward dispensing solution without a multi-fluid manifold.
Optimised fluid flow
A D16 suction connection and short 1.75 m suction hose provide a direct fluid path with low flow resistance.
Digital fluid management
Precise dispensing combined with user and job tracking, reporting and automatic reordering.
Mains-powered operation
Designed for stationary use, S1 operates from a permanent power supply for continuous workshop availability.
Technical specifications
250 cSt at 40°C
Push-in, D16 mm
Push-in, D14 mm
12–15 V DC
Milwaukee M12
Grey, RAL 7015 / Galvanised
Black
10,25 kg
2,5-5 L/min*
Approx. 20 L/Ah*
Max. viscosity
Suction connection
Outlet connection
Operating voltage
Battery socket
Metal
Plastic
Weight
Flow rate
Flow per Ah
*5W-30 at 20°C. 5 L/min requires a high-flow configuration. Performance varies with viscosity and temperature.
Video
See how OilMat™ S1 works
See how OilMat™ S1 provides precise, controlled dispensing from a single fluid source directly into an oil measuring jug.
See OilMat™ S1 in operation, demonstrating precise fluid dispensing into an oil measuring jug.
This video shows an earlier version of OilMat™ S1. Some components and colours have since been updated.
Support & Downloads
Product datasheet

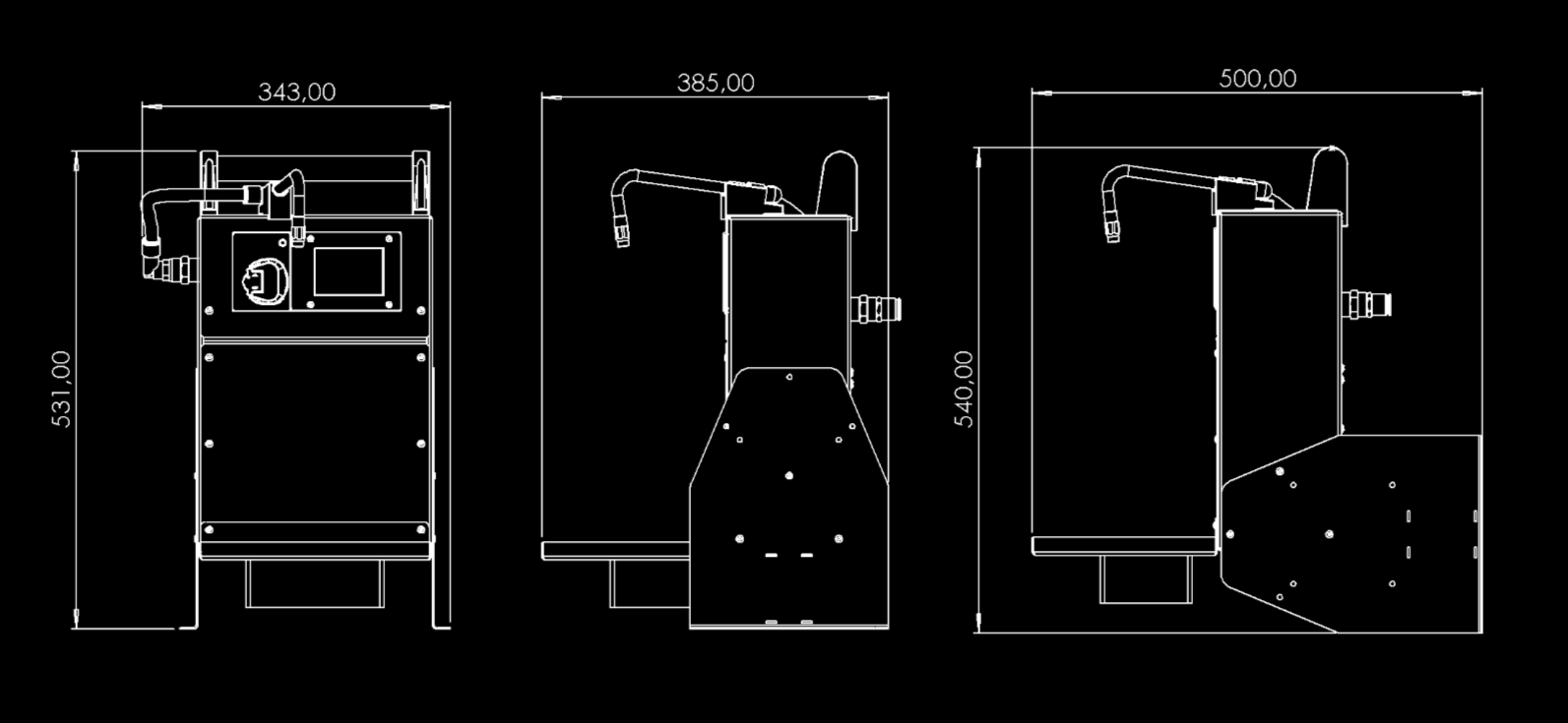

Product information, technical specifications and dimensions for OilMat™ S1.
Technical support
Access manuals, setup guides, troubleshooting and technical support for OilMat™ systems.
