OilMat™ S4
Multiple fluids. One stationary system.
Professional multi-fluid dispensing for workshops requiring several fluids from one fixed dispensing point.
OILMAT™ S4

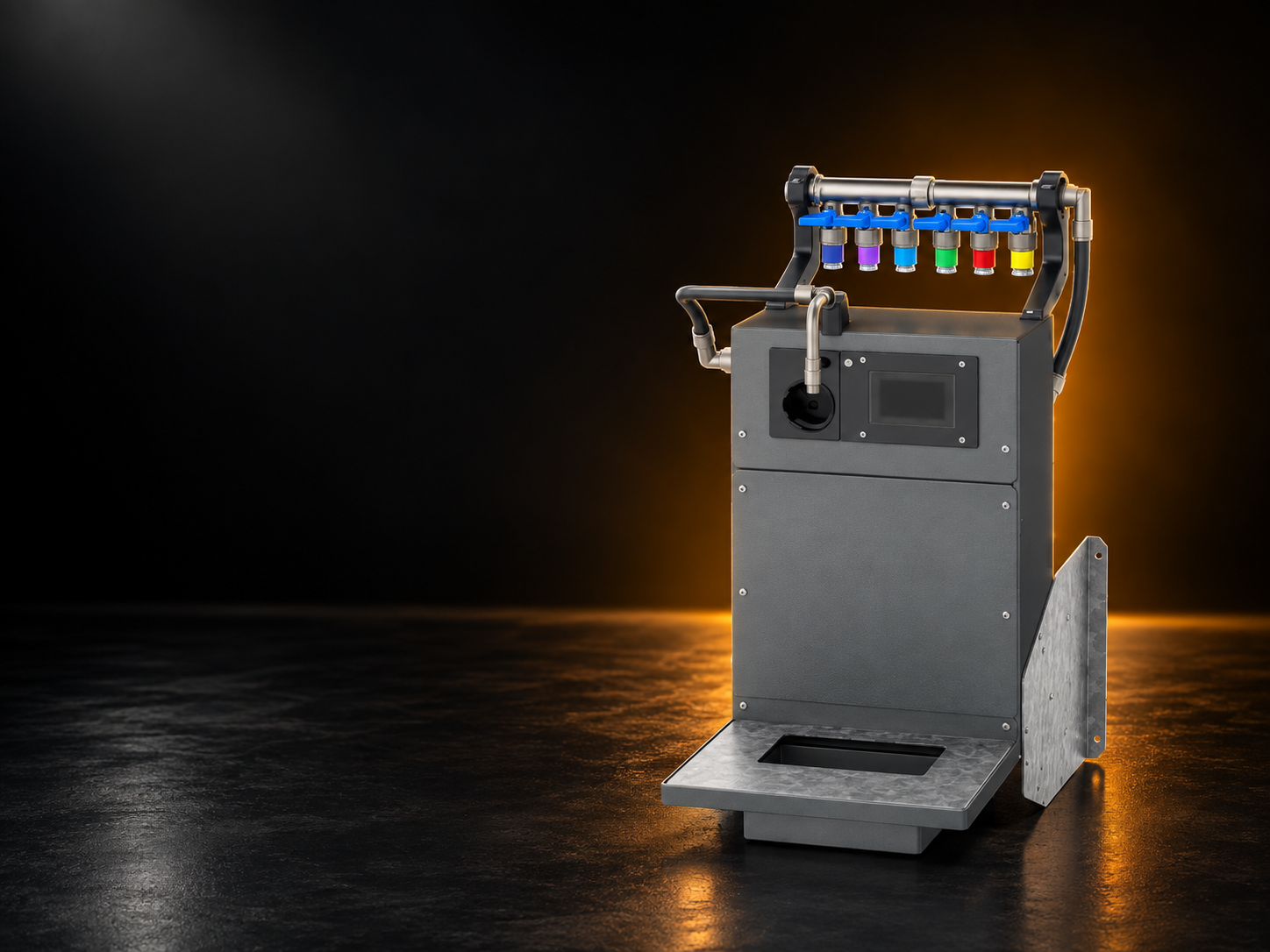

OilMat™ S4 is a stationary multi-fluid dispensing system designed to handle up to six different fluids from one dispensing point.
The integrated manifold allows the required fluid to be selected directly at the unit, while the OilMat™ fluid management system provides precise dispensing, user and job tracking, reporting and automatic reordering.
S4 is designed for workshops where multiple fluids are used from a fixed dispensing location.
Multi-fluid dispensing from one stationary system.
Built for multi-fluid dispensing.

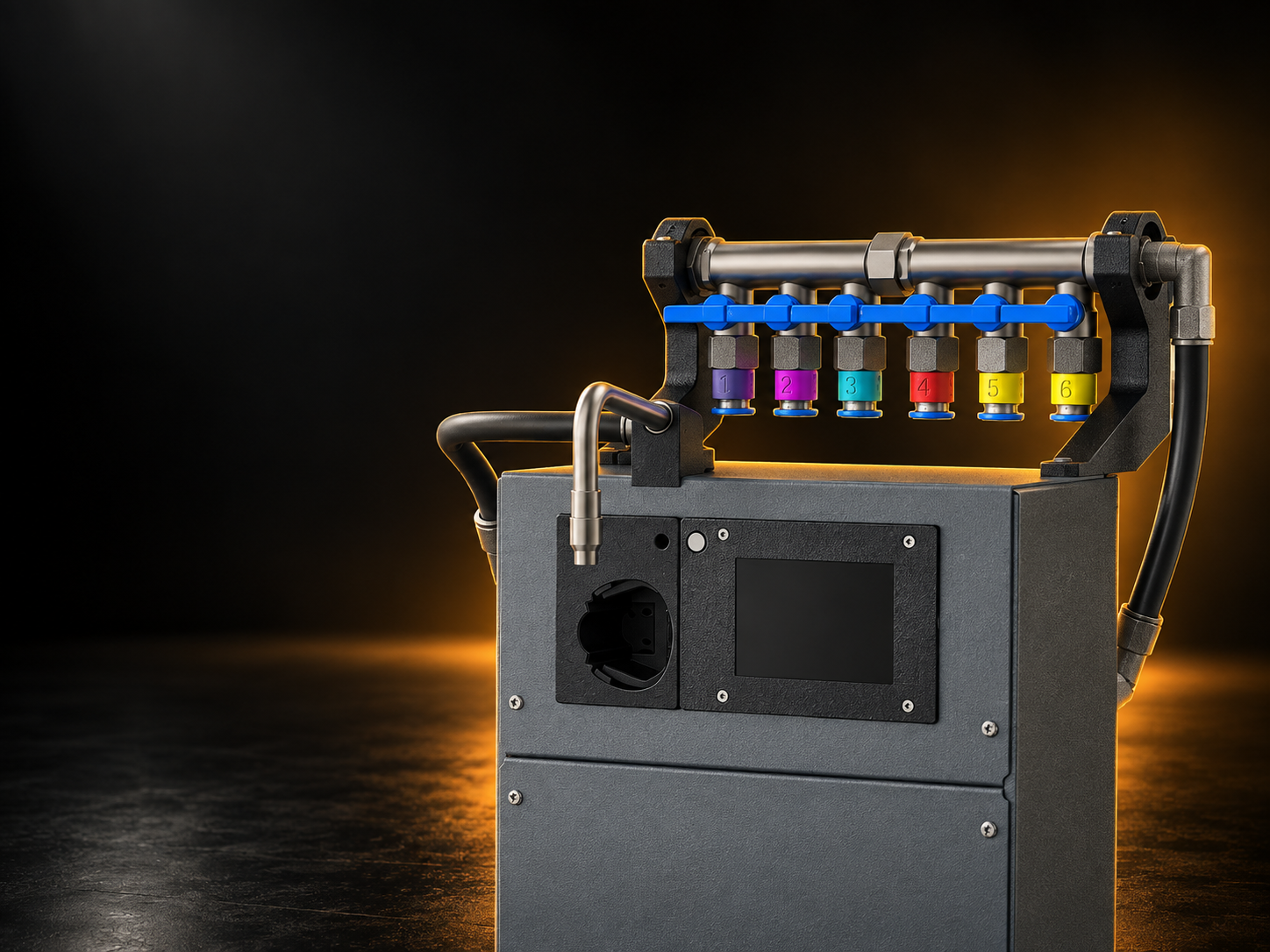

Up to six fluid channels
Connect up to six different fluids to one stationary dispensing system, with individual selection directly at the unit.
Four suction hoses included
S4 is supplied with four 3 m suction hoses and can be expanded to handle up to six fluid sources.
Digital fluid management
Precise dispensing combined with user and job tracking, reporting and automatic reordering.
Designed for stationary use, S4 operates from a permanent power supply for continuous workshop availability.
Mains-powered operation
Technical specifications
250 cSt at 40°C
Push-in, D12 mm
Push-in, D14 mm
12–15 V DC
Milwaukee M12
Grey, RAL 7015 / Galvanised
Black
14 kg
2,5-4 L/min*
Approx. 20 L/Ah*
Max. viscosity
Suction connection
Outlet connection
Operating voltage
Battery socket
Metal
Plastic
Weight
Flow rate
Flow per Ah
*5W-30 at 20°C. 5 L/min requires a high-flow configuration. Performance varies with viscosity and temperature.
Video
See how OilMat™ dispensing works
See how OilMat™ provides precise, controlled fluid dispensing directly into an oil measuring jug.
See OilMat™ in operation, demonstrating precise fluid dispensing into an oil measuring jug.
This video shows an earlier OilMat™ S1 and is included to demonstrate the dispensing process. OilMat™ S4 features a multi-fluid configuration, and some components and colours differ from those shown.
Support & Downloads
Product datasheet

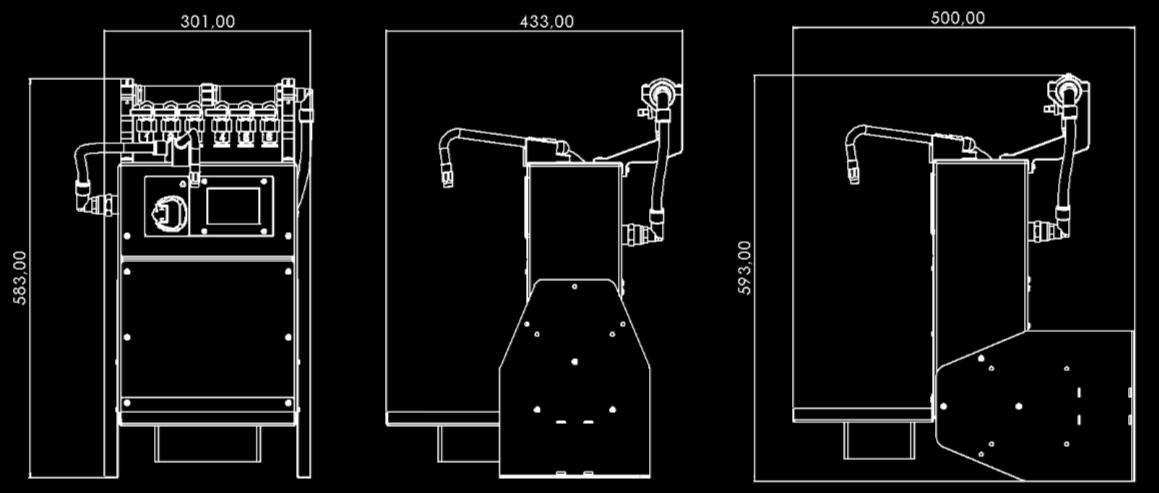

Product information, technical specifications and dimensions for OilMat™ S4.
Technical support
Access manuals, setup guides, troubleshooting and technical support for OilMat™ systems.
