OilMat™ T6
Six fluids. One mobile system.
Professional multi-fluid dispensing directly from the original containers.
OILMAT™ T6

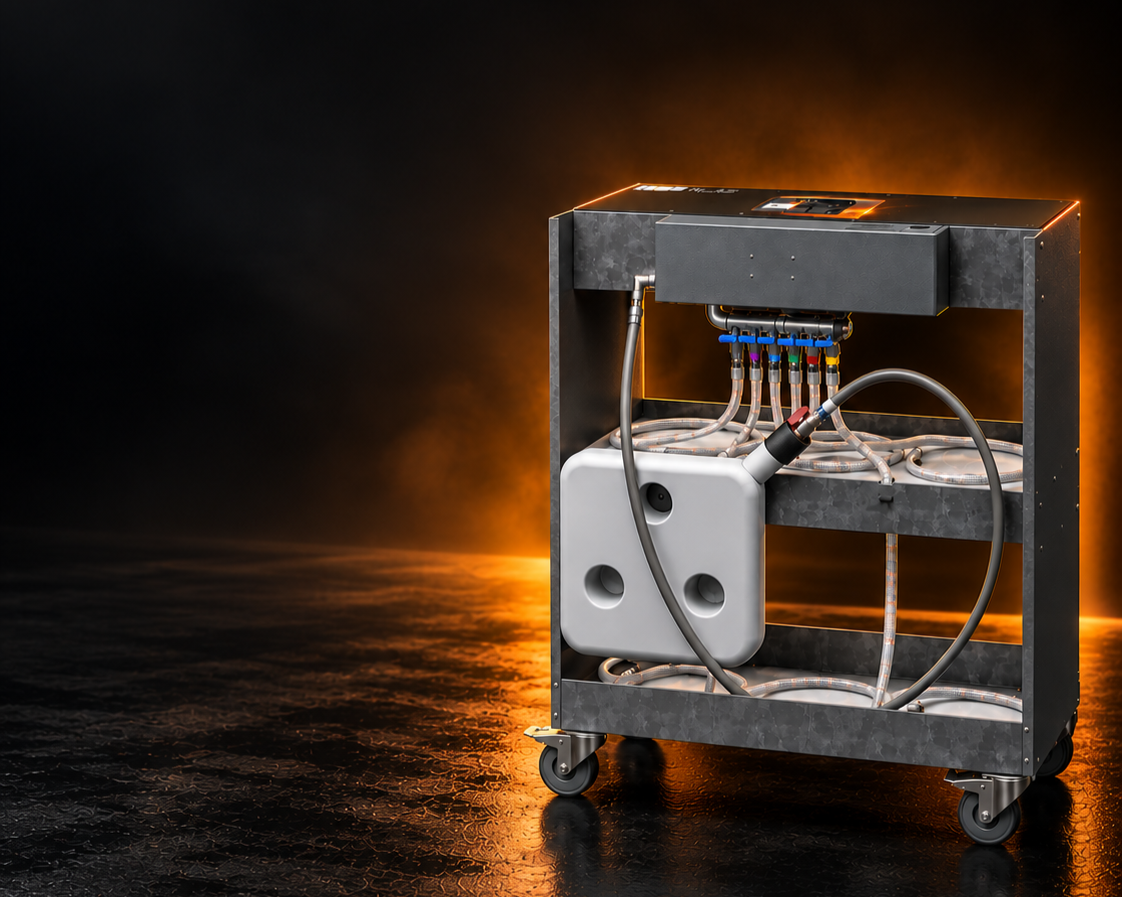

OilMat™ T6 is a mobile multi-fluid dispensing system designed to handle up to six different fluids directly from their original containers.

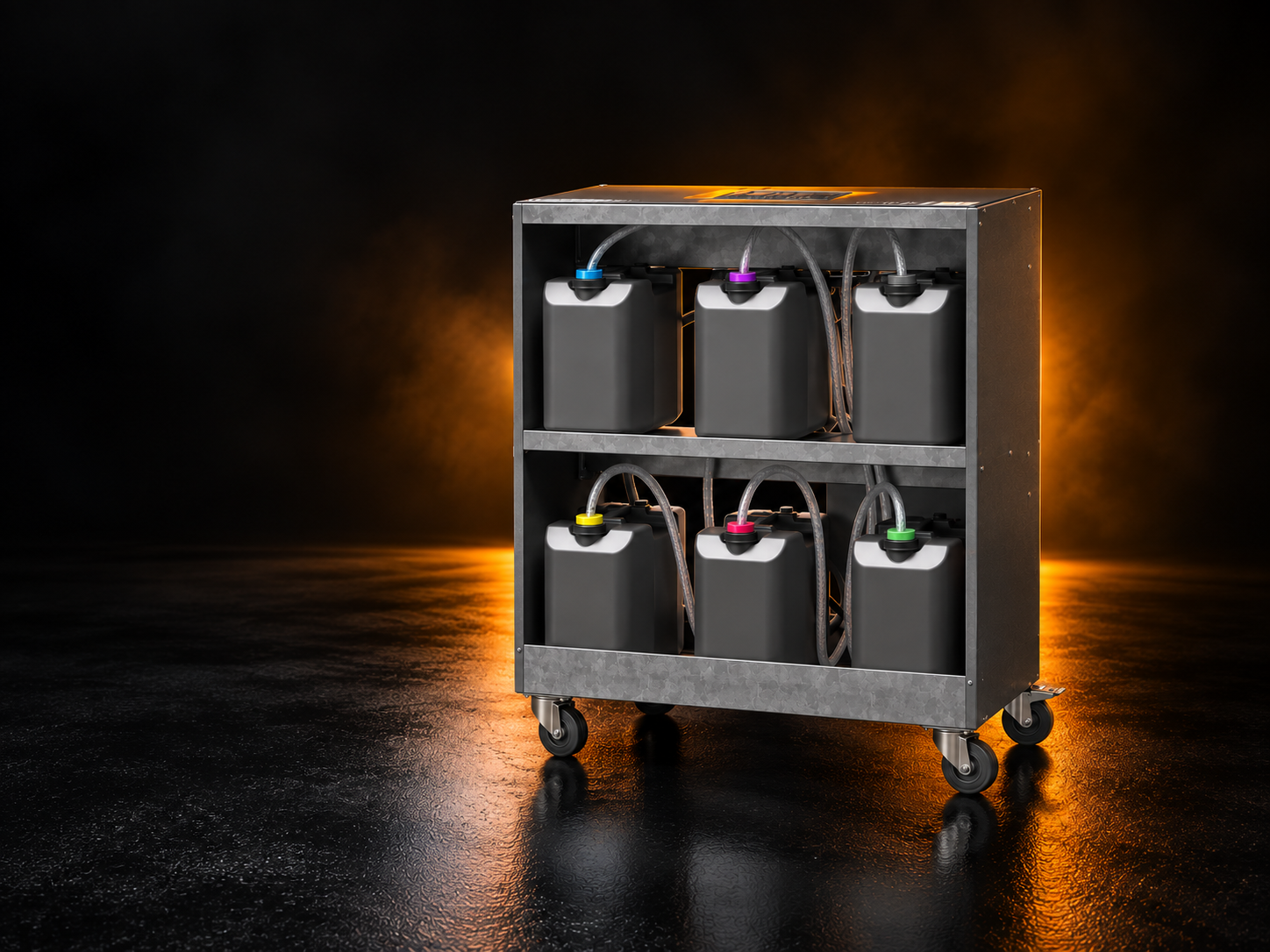

With space for six individual containers, T6 keeps multiple fluids together in one mobile system. Select the required fluid and dispense the exact quantity directly where it is needed. The integrated fluid management system tracks consumption by user and job number, provides detailed reporting and can handle automatic reordering.
Six fluids, ready when you need them.
Built for multi-fluid workshops.
Cordless workshop mobility
Battery-powered operation lets T6 move freely around the workshop without fixed piping or a permanent power connection.
Integrated spill protection
An integrated spill tray helps contain accidental spills within the trolley.
Automatic fluid changeover
When changing fluid type, the system automatically flushes with 150 ml of the previously used fluid.
Adjustable dispensing speed
The dispensing speed can be reduced for vehicles that require a lower filling rate. A slim outlet nozzle can be connected for applications where a more controlled flow is required.

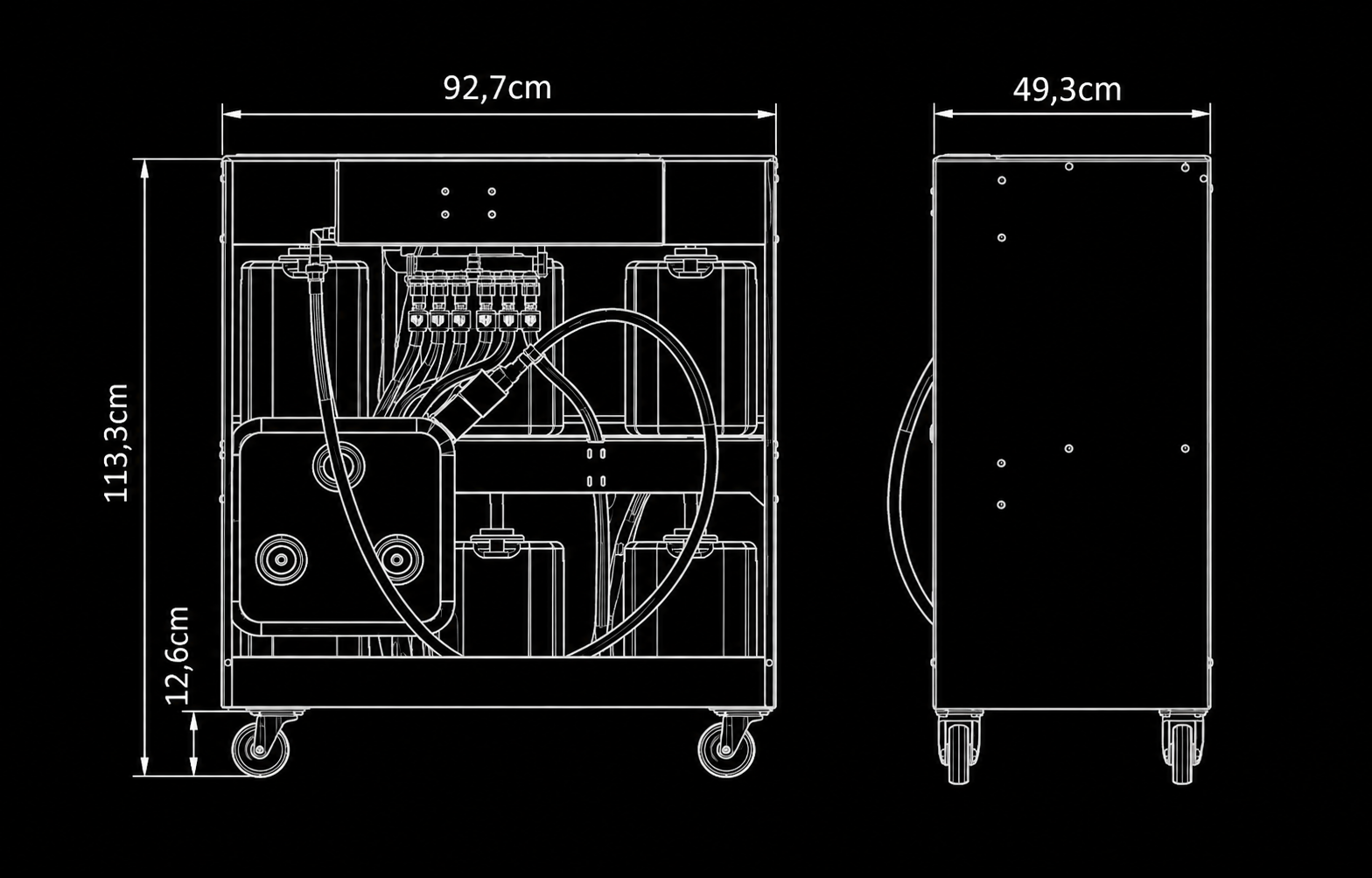

Technical specifications
Max. viscosity
Suction connection
Outlet connection
Operating voltage
Battery socket
Metal
Plastic
Weight
Flow rate
Flow per Ah
250 cSt at 40°C
Push-in, D12 mm
Push-in, D14 mm
12–15 V DC
Milwaukee M12
Grey, RAL 7015 / Galvanised
Black
50 kg
2,5-3,5 L/min*
Approx. 20 L/Ah*
*5W-30 at 20°C. Performance varies with viscosity and temperature.
Accessories

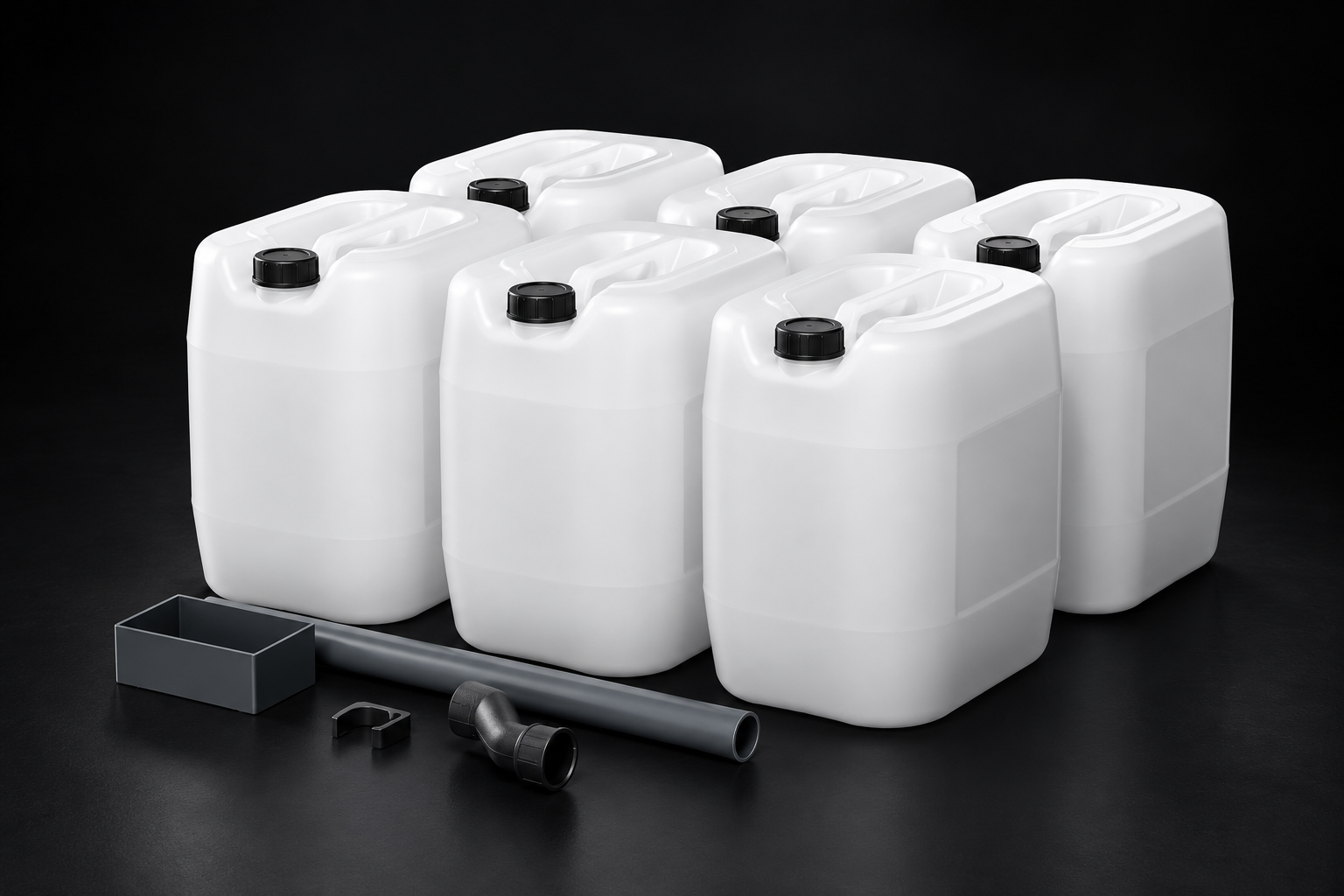

Refill Kit
Designed for Bag-in-Box fluids, the Refill Kit includes six 30-litre containers and a refill tube, providing a practical solution for transferring fluid directly from Bag-in-Box packaging into the OilMat™ T6.

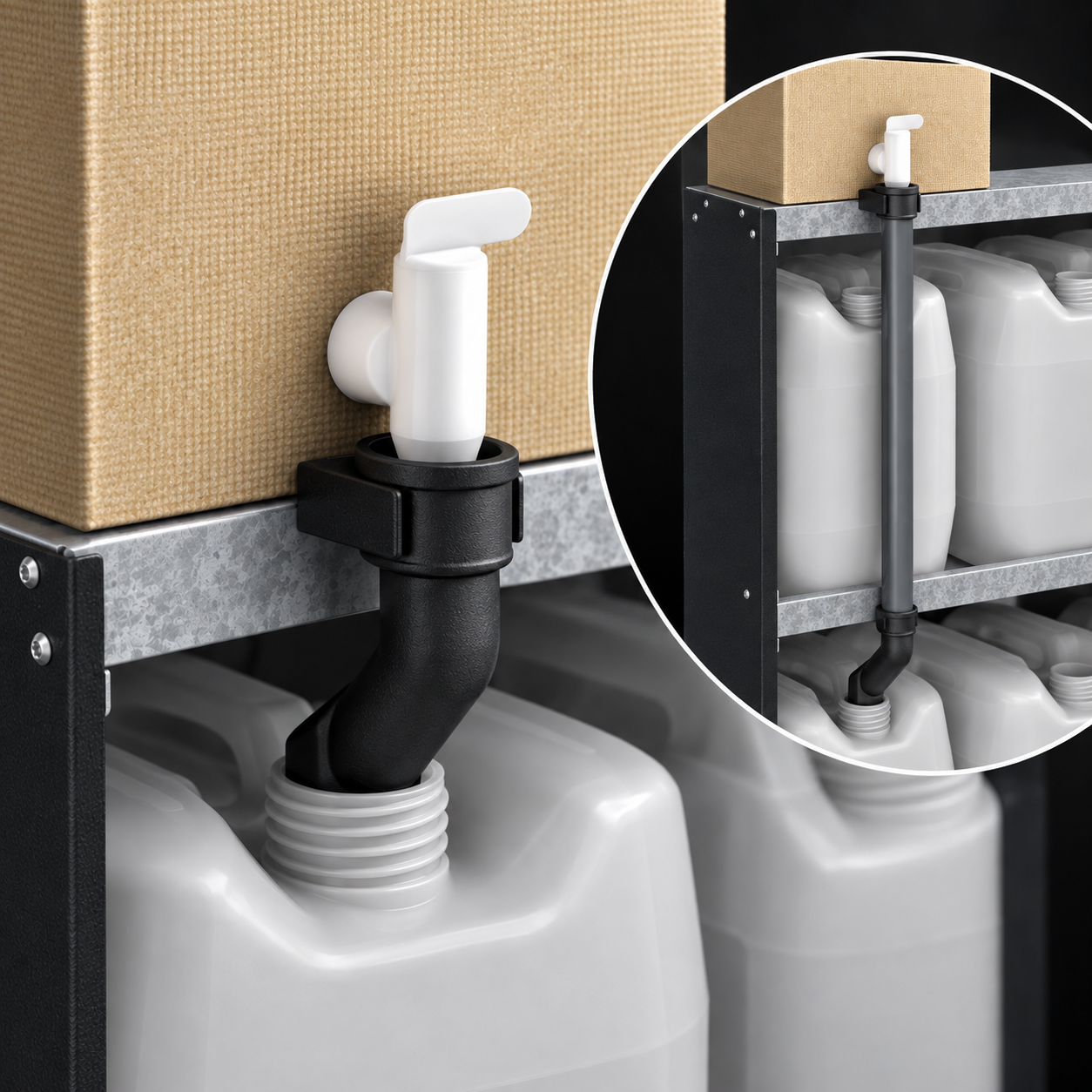

The refill tube can be positioned for filling containers on both levels of the trolley.
Video
See how OilMat™ T6 works
See how OilMat™ T6 handles fluid selection, precise dispensing, fluid changeover and refill.
See OilMat™ T6 in operation, demonstrating fluid selection, precise dispensing, automatic fluid changeover and refill.
Support & Downloads
Product datasheet
Product information, technical specifications and dimensions for OilMat™ T6.
Technical support
Access manuals, setup guides, troubleshooting and technical support for OilMat™ systems.
Interested in OilMat™ concept?
Find your local OilMat™ distributor or contact us to discuss the right solution for your workshop.
Find a distributor → · Contact us →
