OilMat™ U1
Upgrade your trolley. Keep your workflow.
Designed for 200 L drum trolleys, OilMat™ U1 adds precise, digital fluid dispensing to an existing mobile setup — without replacing the trolley.
OILMAT™ U1

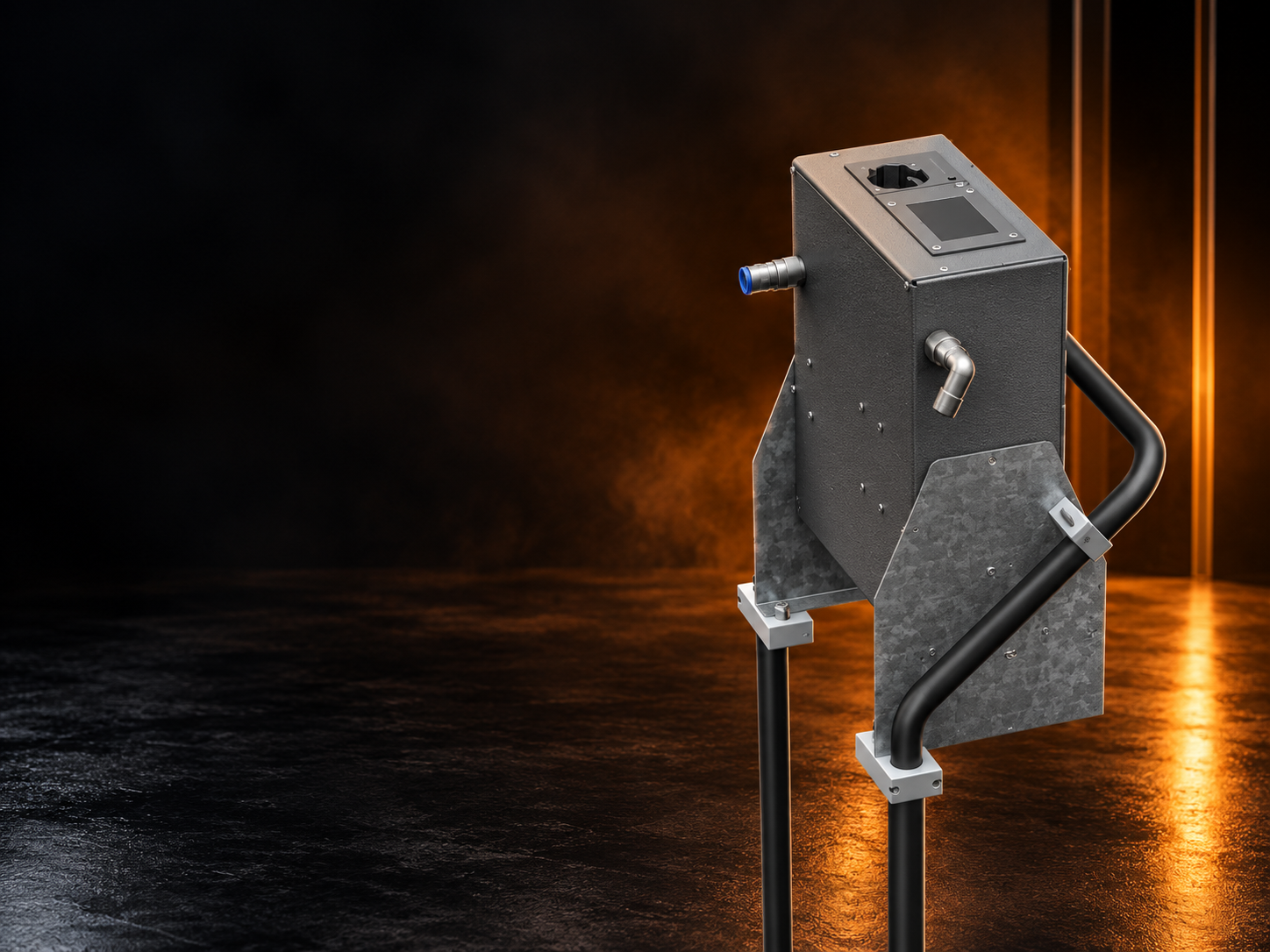

OilMat™ U1 is designed to integrate with compatible 200 L drum trolleys, adding the OilMat™ dispensing and fluid management system to equipment already in use in the workshop.
Instead of replacing the complete trolley, U1 provides a compact upgrade with precise dispensing, user and job tracking, reporting and automatic reordering — while retaining the mobility of the existing drum setup.
For applications requiring higher flow, such as truck and heavy-duty workshops, U1 can also be configured with larger hose dimensions.
Turn an existing drum trolley into a smart dispensing system.
Built to upgrade. Ready to move.

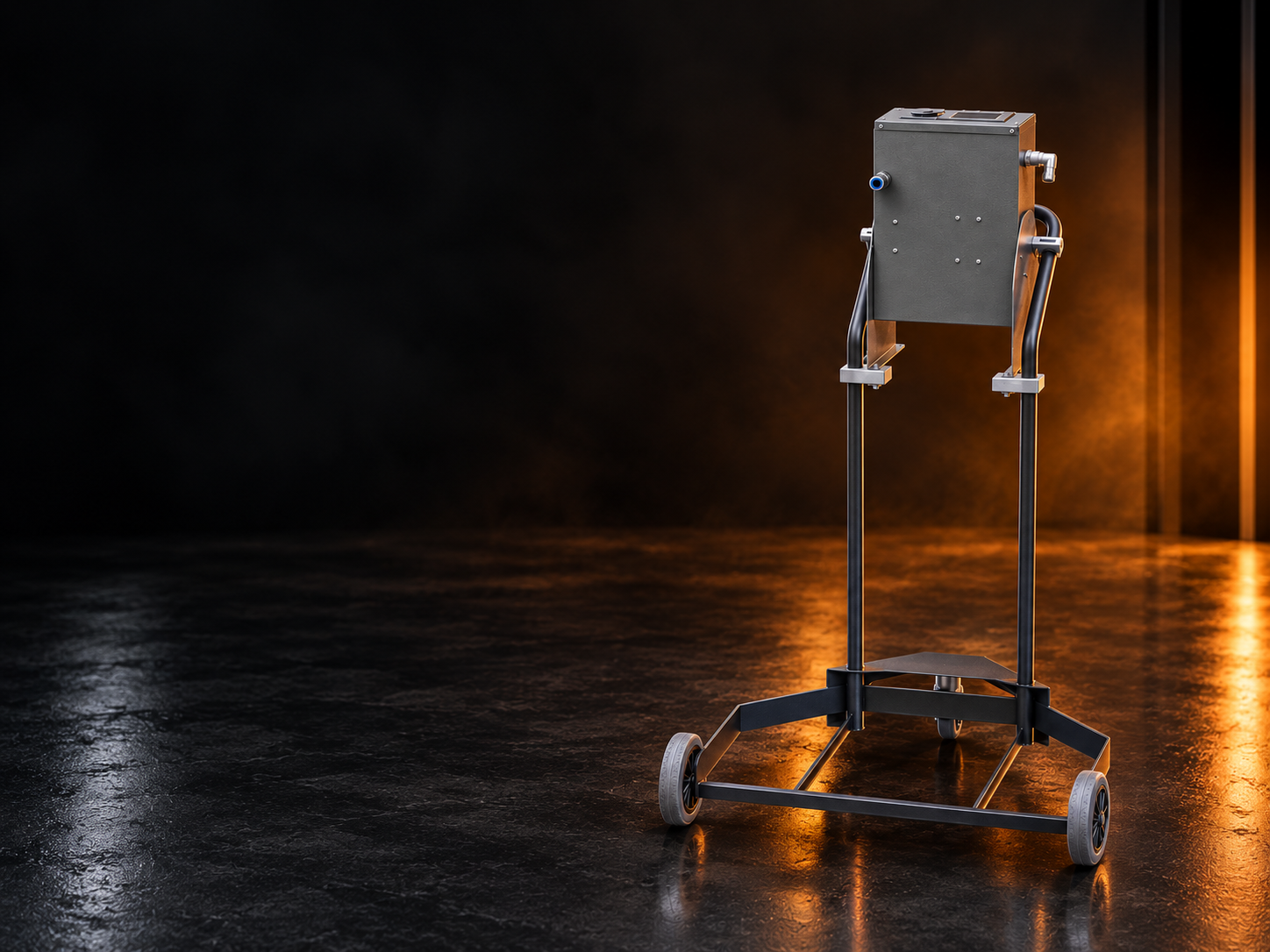

Upgrade an existing trolley
Designed for compatible 200 L drum trolleys, U1 adds OilMat™ dispensing and fluid management while retaining the existing mobile setup.
Built for higher-flow applications
U1 can be configured with larger hose dimensions for applications requiring higher flow, including truck and heavy-duty workshops.
Cordless operation
Powered by a Milwaukee M12 battery, T2 can be moved and used throughout the workshop without fixed piping, compressed air or a permanent power connection.
Adjustable dispensing speed
Reduce the dispensing speed when required, including for vehicles with restricted or slower oil filling points.
Technical specifications
Max. viscosity
Suction connection
Outlet connection
Operating voltage
Battery socket
Metal
Plastic
Weight
Flow rate
Flow per Ah
250 cSt at 40°C
Push-in, D16 mm
Push-in, D14 mm
12–15 V DC
Milwaukee M12
Grey, RAL 7015 / Galvanised
Black
10,1 kg
2,5-5 L/min*
Approx. 20 L/Ah*
*5W-30 at 20°C. 5 L/min requires a high-flow configuration. Performance varies with viscosity and temperature.
Accessories

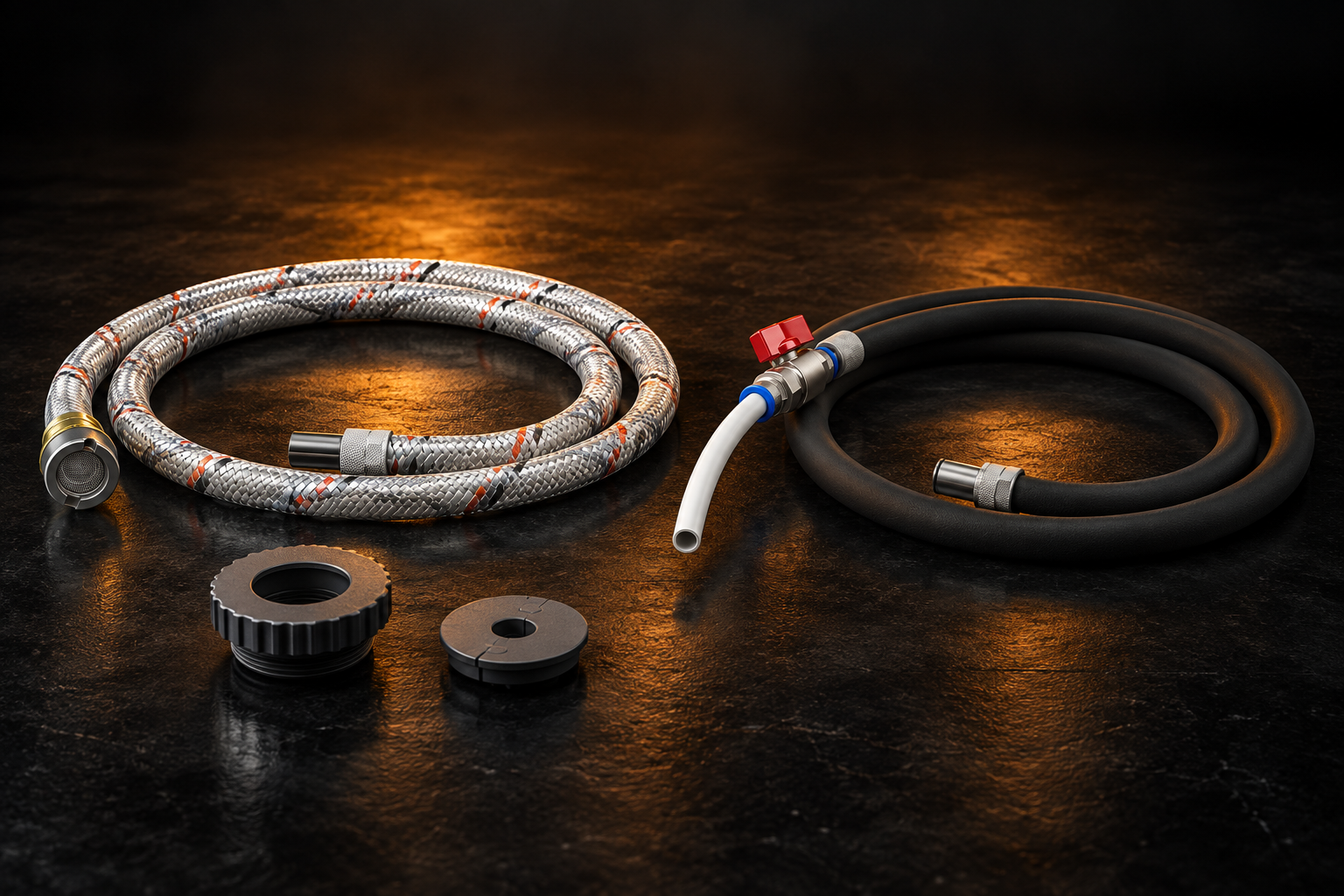

Hose configurations
OilMat™ P is supplied without hoses, allowing the system to be configured for the specific application.
Choose the appropriate suction and outlet hose configuration based on the container setup and required flow.
View all OilMat™ accessories →
Support & Downloads
Product datasheet
Product information, technical specifications and dimensions for OilMat™ PU.
Technical support
Access manuals, setup guides, troubleshooting and technical support for OilMat™ systems.
Setup & support videos
Watch video guides for setup, operation and support of OilMat™ systems.
Interested in OilMat™ concept?
Find your local OilMat™ distributor or contact us to discuss the right solution for your workshop.
Find a distributor → · Contact us →
